SECTIONAL WARP BEAM
FOR DIRECT WARPING FROM SPOOLS OR SMALL BOBBINS


This system consists of 4 rake-like pieces that are attached to the plain beam on the loom or to the double warp beam. It allows beaming 1" or 2" wide (25 mm or 50 mm) at a time and requires a number of spools according to the sett of warp ends.
On Dorothy, the cramps are fixed directly on the beam; it holds 5" (12,5 cm) by turn.
On Compact, it holds 15'' (38 cm) per turn while on Artisat or Inca, it holds 16" (40 cm) per turn.
On Fanny, Mira, Nilus, Nilus II, Colonial I, Kebec or Nilart, it holds 19" (48 cm) by turn.
It is especially appreciated by the weaver who has no helper since the warp can be beamed easily by one person without help.

1" (25 mm) SECTIONS

6443-2000 22"
6443-3000 24"
6441-3000 27"
6443-4000 32"
6441-4000 36"
6441-5000 45"
6441-6000 60"
6441-7000 100"
6441-8000 120"

2" (50 mm) SECTIONS

6442-4000 36"
6442-5000 45"
6442-6000 60"
6442-7000 100"
6442-8000 120"


WARP BEAM FOR DOROTHY LOOM
With brake drum or ratchet wheel (for older loom)

  1. secwarp2.gif (16168 octets)

    6443-1100 Dorothy 24"

EXTENSION KIT TO CONVERT

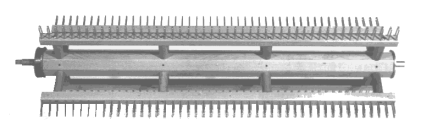

SECTIONAL WARP BEAM TO 1 YARD PER TURN (48 cm) secwarp4.gif (30220 octets)

6161-2000 For loom from 27" to 36" (70-90 cm) - 12 pieces
6161-6000 For 45" loom (115 cm) - 16 pieces -
6161-7000 For 60" loom (150 cm) - 16 pieces + 12 blocks -
6162-4000 For 100" (250 cm) loom - 24 pieces + 20 blocks -
6162-5000 For 120" loom (300 cm) - 32 pieces + 28 blocks -



Click picture

TENSION BOX

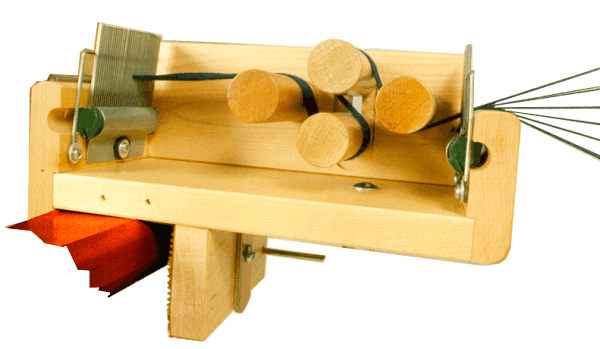

The tension box is used with the Sectional Warp Beam and is adjustable to fit any Leclerc floor loom. The tension is adjustable, and it gives uniform tension on all warp ends as they are wound from the spool rack to thc loom. Two open 12 threads per inch (4.8 / cm) combs allow easy threading and help guide threads into the proper section.
It can also be used with counter when filling bobbins, holding threads and giving number of meters or yards on bobbins.

NEW 1998: 2 fix rollers, 2 adjustable rollers for better tension control.
6160-1000

COUNTER
The counter is placed on the tension box and measures the yardage of the warp to ensure that all sections are of the same length.
Easily removable from the tension box.

6160-6000 (english system)
6160-8000 (metric system)

TENSION BOX EXTENSION

This extension with one comb close to your warp gives you better control on the width of the yarn section (1" or 2") so the guides are not needed. Height of comb is adjustable. Good for sectional warp beam with or without extension.

1042-0000

COMB FOR TENSION BOX
Any reed size available, Mention number of dents per inch (cm).
6260-0000


GUIDES
A set of 8 pieces that fit the steel divisions for each section of the sectional warp beam. They prevent the warp ends from going into other sections, or from staying on top of the divisions. When the section is filled, transfer to the next section.
6166-1000  per set of 8


DIVIDERS
Useful when beaming long warps. They are placed in each section every 5 or 10 yards (meters) to prevent uneven build-up of threads and keep uniform tension in the warp. They all have to be placed in the same turn.

6165-1000 1" (25mm) sections
6165-2000 2" (50mm) sections

DOUBLING STAND

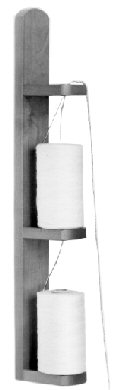

Doubling stand used for twisting two or three threads together.
One tube of yarn is placed on the floor, one on the lower shelf and one on the center shelf.
Thread passes through the center of the middle and upper cones (or tubes). Thread from upper shelf then joins the two lower ones and passes through the hole in the top shelf.
Hang on wall (2 screws included) 2½" x 5½" x 25" (Made of maple)

6360-1000
