REPAIR PARTS

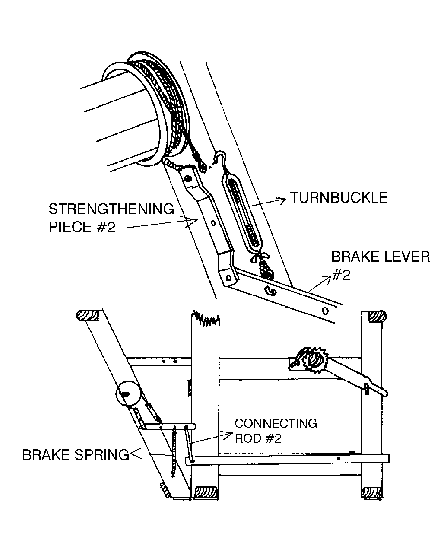

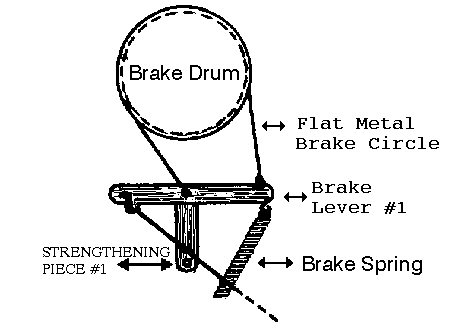

3000-5884 Brake spring
4720-0000 Brake lever #1
4719-0000 Stre. piece #1
1113-0000 Nylon Pulley
4720-0001 Brake lever #2
4779-0000 Stre. piece #2
4789-0000 Connecting rod
5874-0000 Turnbuckle


3000-4701 Brake circle for most of looms (Artisat, Mira, Fanny, Nilus, Nilus II Colonial and Nilart) BRAKE2.gif (1400 octets)
1400-0000 1400-0000 Wire Circle for Dorothy and Compact Loom

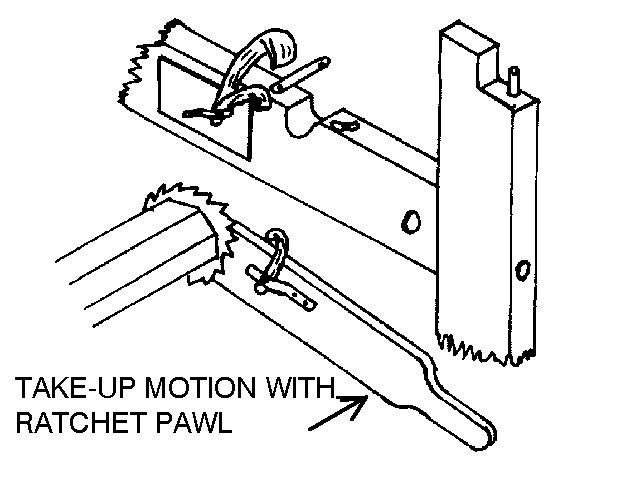

TAKE-UP MOTION WITH RATCHET PAWL FOR:
1022-2802 Compact 24"
1009-2802 Artisat 36"
3672-0000 Mira, Fanny, Nilus and Nilus II

3060-0000 Ratchet Pawl for take-up motion handle
3070-0000 Long ratchet pawl for cloth beam
3071-0000 Short ratchet pawl for cloth beam
3080-0000 Ratchet wheel for cloth beam


3020-0000 Plain Wheel for front or back beam
3030-0000 Brake drum Mira, Fanny, Nilus, Nilus II, Colonial and Nilart
3110-0000 Brake drum for Artisat
0342-7101 Polyvinyl non-skid base for floor looms

3000-9229 Beater Bumper

3000-9233 Bumper inder shaft frame 4s loom
3000-9230 Bumper under shaft frame 8s loom
