LECLERC LOW CASTLE LOOMSJACK-TYPE : Nilus 4, or 8
shafts - 36", 45" or 60"
|
|
LECLERC LOW CASTLE LOOMSJACK-TYPE : Nilus 4, or 8
shafts - 36", 45" or 60"
|
|
|
|

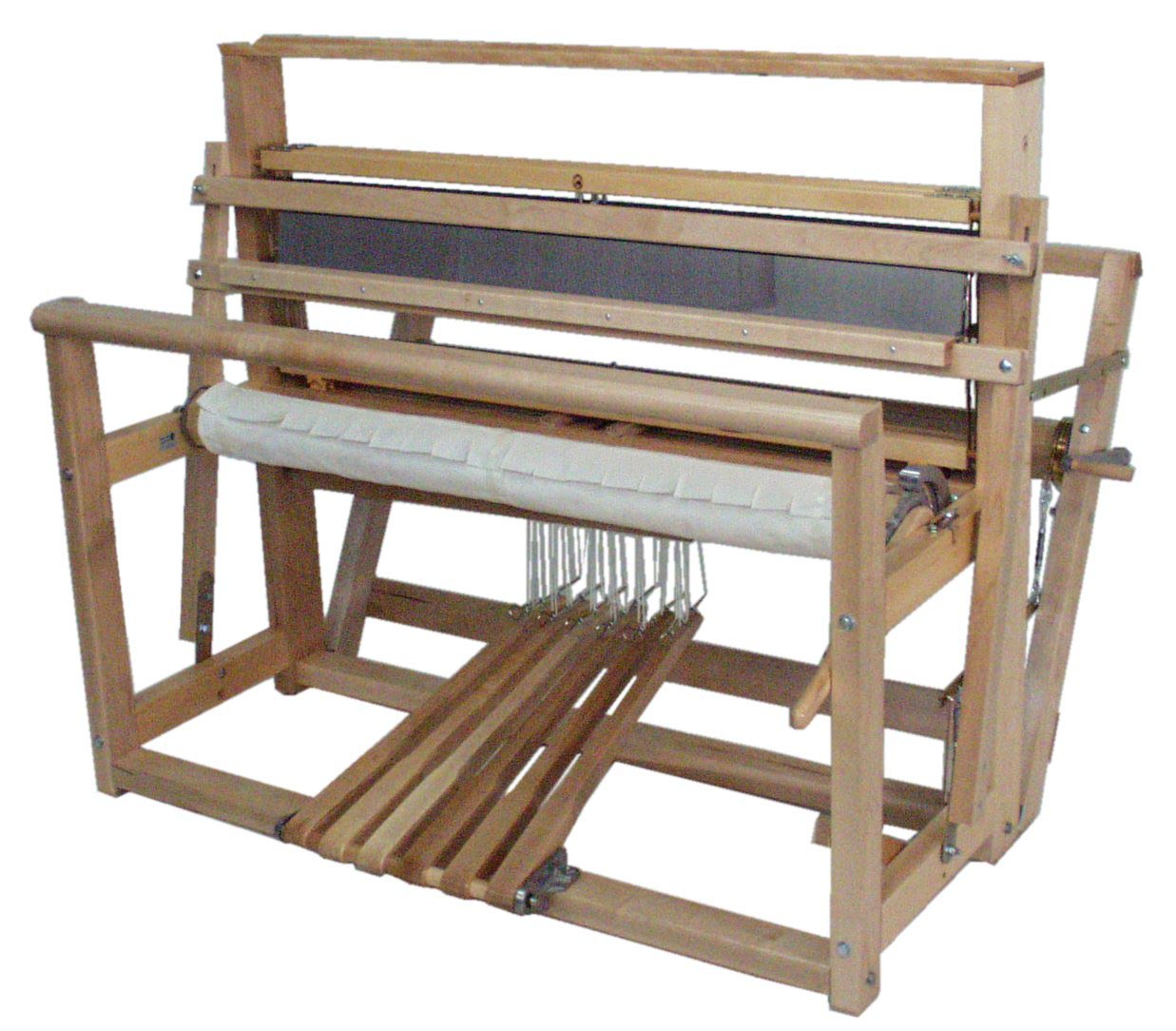

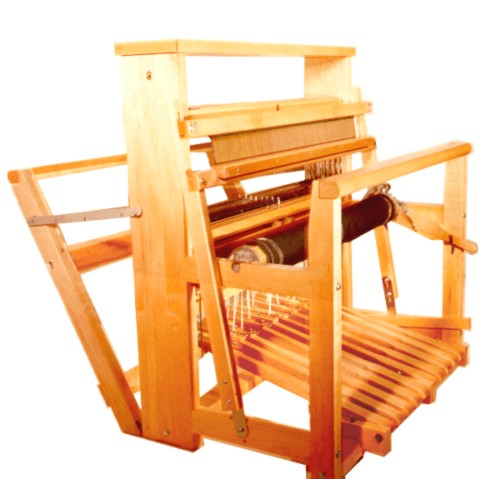

NILUS |
| A sturdy 4-shaft jack-type loom that
fold to a depth of25" (63 cm). A loom with
independant shaft ideal to weave any type of fiber. One
of the most popular models. Friction brake. Remouvable front and back breastbeam. Note: 4+4 loom mean that you buy the as 4 shafts but have the castle to receive 8 shafts. |
NEW!
NILUS 36",
45" or 60" JACK-TYPE LOOM
WITH BACK HINGE TREADLES
As with all Loom designs there is some tradeoff.
With the Jack Loom the most often cited was the difficulty in
getting a good shed with 6+ Shaft weave construction. Our new
design has overcome this problem . The new design features the
Treadles anchored at the rear of the Loom, with a new, unique,
Rocker mechanism that insures even tension on all Treadle Cords
with the Treadles in both the rest or depressed position. This
new design provides the weaver with the ease of Leg Treadling
multi Shaft designs, comparable to that of a 4 shaft. In
addition, we experience a wide , clean shed on all Shafts. By
following a new procedure, the new Treadle design retains the
folding feature designed into the original Nilus..
 |
 |
BACK HINGE TREADLES KIT FOR EXISTING NILUS
36", 45", OR 60"
1025-3638
1025-4528
1025-6028
FANNY, NILUS STANDARD EQUIPMENT
| » Steel reed, 12 dents/inch (5dents/cm) | » 2 lease sticks |
| » 6 treadles | » 4 warp rods |
| » Wire heddles, 12½" | » 2 aprons |
| » 1 boat shuttle 11¾" (6122-3000) | » 2 cords |
| » 1 doz. plastic bobbins 6133-6000 | » Book: "Warp and Weave" |
| » 1 reed & heddle hook 6141-7000 | » Assembly instructions |
SPECIFICATIONS & DIMENTIONS
| Weaving width | 36" (90 cm) | 45" (115 cm) | 60" (150 cm) |
| Number of heddles | 1000 | 1200 | 1500 |
| Loom Width | 4" (117 cm) | 55" (140 cm) | 70" (178 cm) |
| Depth when open | 36½" (93 cm) | 36½" (93 cm) | 36½" (93 cm) |
| Depth when folded | 25" (63 cm) | 25" (63 cm) | 25" (63 cm) |
| Height C-Balance | 52" (132 cm) | 52" (132 cm) | 52" (132 cm) |
| Height Jack-type or Countermarch |
44" (112 cm) | 44" (112 cm) | 44" (112 cm) |
| Front height | 31¼" (79 cm) | 34¼" (79 cm) | 34¼" (79 cm) |
| Net weight | 118 pds (58 kg) | 130 pds (59 kg) | 258 pds (72 kg) |
OPTIONS
| Extra charge for
inserted eye heddles instead of wire heddles |
| Bench open ends |
| Sectional warp beam 1" section |
| Sectional warp beam 2" section |
| Double warp beam |
| Flying shuttle beater |
|
Free shipping in US and Canada (Continental only) |
