HEDDLES

Leclerc always believes that light wood frame, heddle support and
metal heddle make the best combinaiton for harness frame:
- Easy to put heddle in harness
- Very easy to move heddles in heddle support
- Easy threading
- Easy to install correction heddle.


CANADIAN PRICE (.PDF files)

US PRICE (.PDF files)


WIRE HEDDLES

Standard wire heddles: supplied with standard equipment of each loom

9" (240 mm)
10" (268 mm)
12" (317 mm)
(6291-2000) /100
(6291-4000) /100
(6291-6000) /100
(0629-1200) /500
(0629-1400) /500
(0629-1600) /500

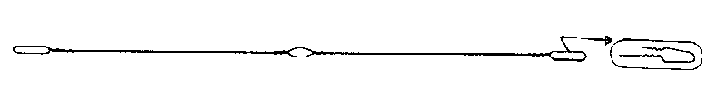

INSERTED EYE HEDDLES

Inserted eye heddles: wire heddles with special oval shape eye. Heddles do not catch together.
They slide easily in heddle support. Warp threads ride througheye smoothly.

03
9½" (240mm)
6290-2000/100
0629-2200 /500
10½" (268 mm)
6292-4000/100
0629-2400/500
12½" (317 mm)
6292-6000/100
0629-2600/500


TEXSOLV
Texsolv System heddles are made in joined 100-heddle bundles. The strong, durable polyester is crocheted without knots. Heddles do not stretch. On all Leclerc Looms, heddles slide easily on heddles supports. Eye Lengths: ½"

5

6298-0900 9 1/2" (240 mm)  / 100
6298-1000 10 1/2" (268 mm)  / 100
6298-1200 12 1/2" (317 mm)  / 100



LARGE INSERTED EYE HEDDLES:
the inside dimension of the eye is 9/16" x 5/16"(10 mm x 7 mm)
6

10½" (268 mm)
12½" (317 mm)
(6295-4000) /100
(6295-6000) /100

LONG EYE HEDDLES:
the inside dimension of the eye is 2" x 3/32" (50 mm x 3 mm)
07

10½" (268 mm)
12½" (317 mm)
(6296-4000) /100
(6296-6000) /100


FLAT METAL REPAIR HEDDLE:
the ends are made such in a way that they can be added any-where,  any-time

08

10½" (268 mm)
12½" (317 mm)
(6294-6000) /each
(6294-7000) /each

STANDARD REPAIR HEDDLES

Repair heddles: ends of heddles are not soldered and can be added any-where in harness frame
0

9" (240 mm)
10" (268 mm)
12" (317 mm)
(6294-1000) /12
(6294-3000) /12
(6294-5000) /12
