GOBELIN 36", 45" 60" AND 100"
HIGH-WARP TAPESTRY LOOM

CANADIAN PRICE (.PDF files)

US PRICE (.PDF files)



STANDARD EQUIPMENT:
1 wood tapestry bobbin
1 doz plastic tapestry bobbins
Cords
Instruction

SPECIFICATION:
Depth: 20” (51cm)
Height: 72” (183cm)
Shipping weight: 160 lbs (72 kg.)
For a 60” loom

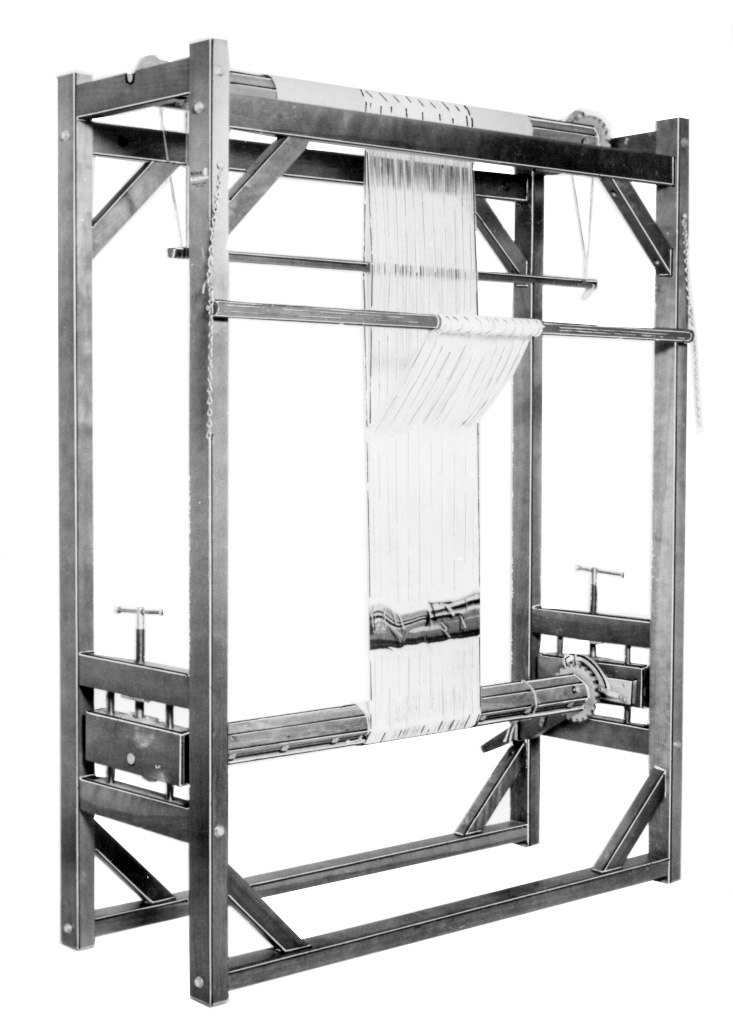

A very simple loom, completely vertical.
Material is stretched from one beam to the other, like the tapestry made in the "Gobelin" school in Paris.
This standard loom does not have any beater nor shaft and is used for warp tapestry weaving with string heddles or finger manipulation.
A very high tension can be put in the warp by two heavy screws placed on each side of the loom. These screws lower the bottom beam. The rods that hold the warp are inserted in the beams.
5236-0000 36” loom
5245-0000 45” loom
5260-0000 60” loom
5210-0000 100” loom

NEW:
GOBELIN LOOM WITH:
---2 SHAFT FRAME
---1 BEATER (UP AND DOWN ACTION)
---2 TREADLE TO MAKE A SHED
This loom can be use to make tapestries or rugs
With 200 heddles and a reed 6 dent per inch
5236-9000 36” loom
5245-9000 45” loom
5260-9000 60” loom


KIT TO ADD ON A REGULAR EXISTING GOBELIN LOOM:
With 200 heddles and a reed 6 dents per inch
1050-9600 for a 36” loom
1050-9700 for a 45” loom
1050-9800 for a 60” loom

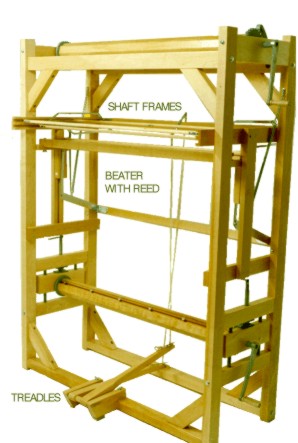

Click picture to see a side loom view showing shaft frames, beater with reed and treadles


Free shipping in US and Canada (Continental only)

 To read and print them you will need the Adobe Acrobat Reader available free from the  Adobe.com web site.20
