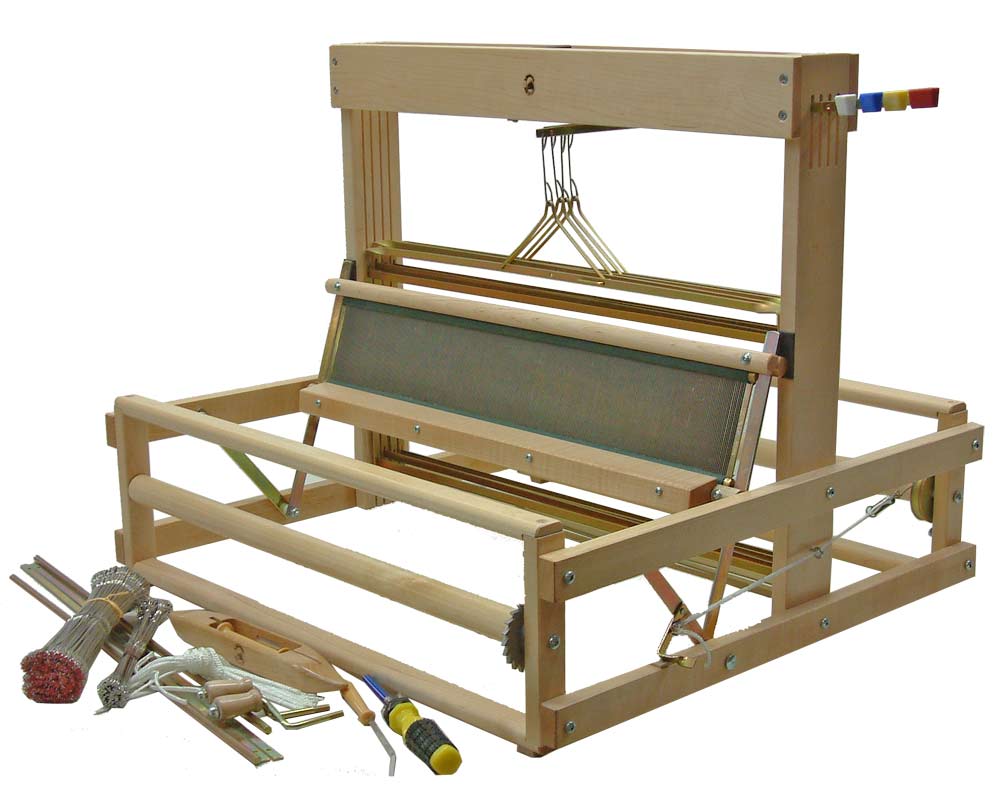

DOROTHY 24" V2


Dorothy

    2410-0000 4 shaft loom
    2411-0008 8 shaft loom

Exactly the same features as the well known Dorothy 15¾" except that the weaving with is 24".


FRICTION BRAKE.
Side loom levers.
Select and de-select shaft in one action.




STANDARD EQUIPMENT

» Steel reed, 12 dents/inch
» 600 wire heddles 9½"
» 1 boat shuttle 6122-1000
» 1 heddle hook 6141-7000
» 2 metal lease sticks
» 2 beam sticks with cords
» Instructions

SPECIFICATION & DIMENSIONS

  4 SHAFTS 8 SHAFTS
Weaving Width 24" (60 CM) 24" (60 CM)
Number of heddles 600 600
Loom Width 28" (71 cm) 28" (71 cm)
Depth 25" (64 cm) 29" (74 cm)
Height 21½" (54 cm) 21½" (54 cm)
Net weight 22 lbs (10 kg.) 30 lbs (13.6 kg.)

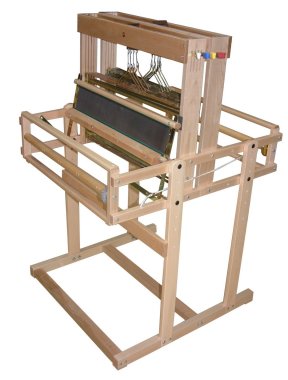

STAND FOR DOROTHY 24" 4s
6313-2000

We re-designed

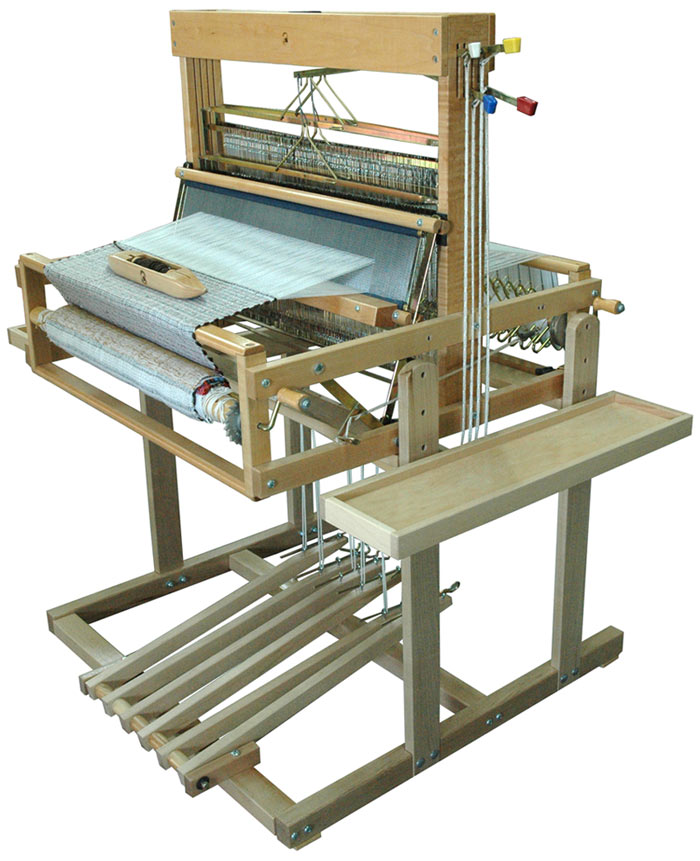

A stand to convert your Dorothy 24" (4 shaft only) into a foot-power loom.

The lams are connected to the levers by cords that pass on the outside of the loom.

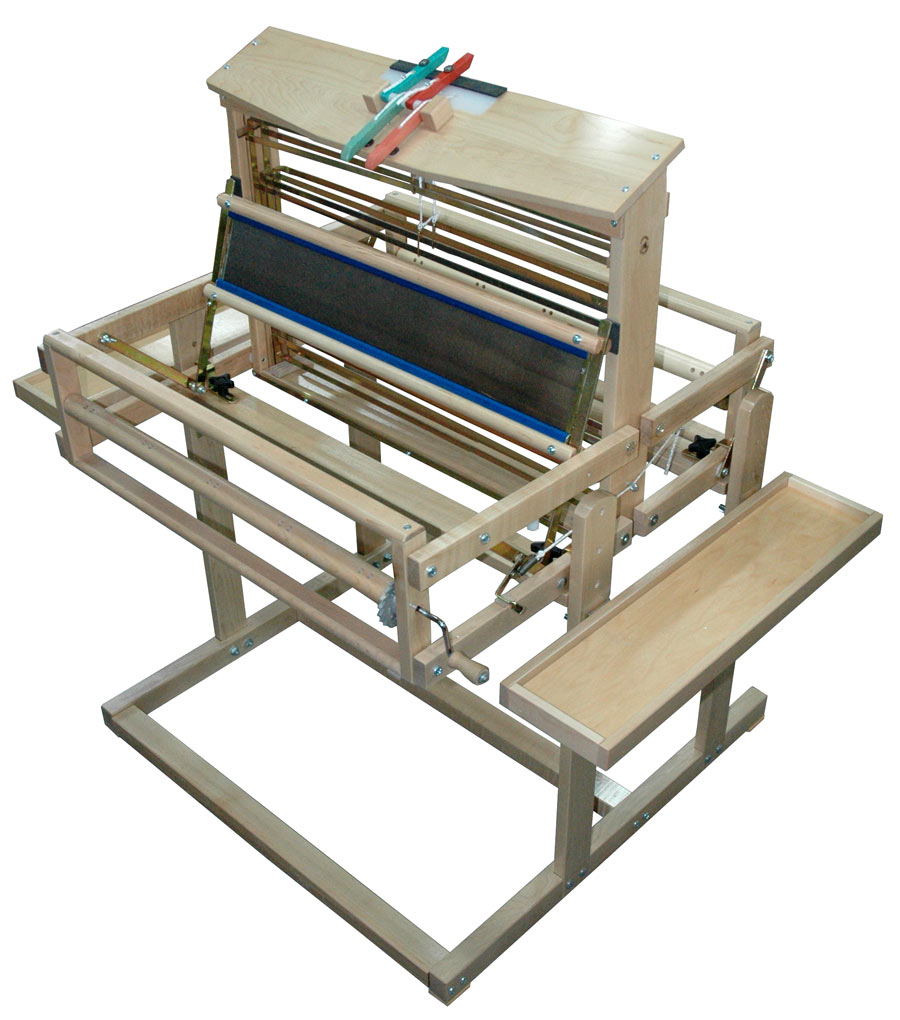

Stand for Dorothy 24", 4 or 8s
or the Voyageur 24"  4, 8, 12 or 16s

With or Without the side shelves.
