COMPACT 24"



4 SHAFT LOOM 1022-0000
8 SHAFT LOOM 1022-0001


NEW (2005)

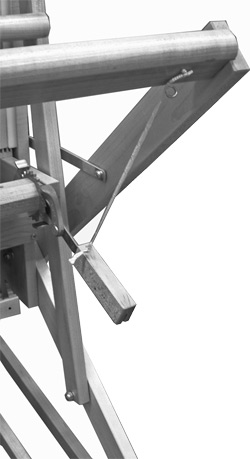

Take up handle support

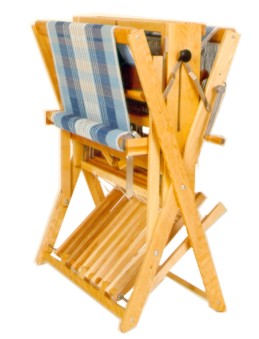

New 2008, 4 wheels for easier
transportation when fold

24" WEAVING WIDTH

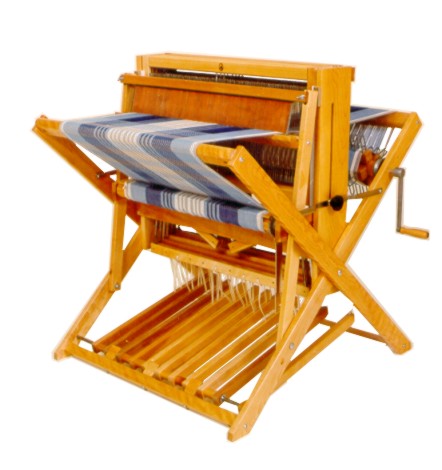

This jack-type floor loom is light but solid, and easily movable when folded. It is especially designed for workshops and demonstrations. To fold, slightly unscrew the two handles on the sides of the loom and slide them up. It can be folded without trouble even after weaving has started. It is built with six treadles for easy tie-up, and can be converted into an 8 shaft loom, by adding 4 shafts (and 4 treadles). Equipped with a 1 7/8" (4 cm) regular plain beam, to which a set of rake-like pieces (sectional warp beam) can be added. The rake-like pieces (sectional warp beam) must be screwed directly on the beam, without extension. The circomference of this sectional warp beam is 15" (38 cm)

STANDARD EQUIPMENT


Steel reed, 12 dents/inch (5dents/cm)
10" (26.8 CM) wire heddles
1 boat shuttle 6122-1000
1 reed and heddle hook 6141-7000
2 metal lease sticks
2 beam sticks with cords
2 metal warp rods
Assembling Instructions
Book "Warp and Weave"



SPECIFICATIONS AND DIMENSIONS

Number of heddles 600
Loom width (outside) 32" (81 cm)
Depth when open 35" (89 cm)
Depth when foldes 18" (46 cm)
Height when open 36" (93 cm)
Height when folded 42" (108 cm)
Net Weight 84 lbs (38 kg)



OPTIONS

4 Extra Shaft Kit
Extra charges for Inserted Eye Heddles
Compact Loom Double Back Beam
Sectional Warp Beam 1" (25 mm) Sections
Bench (adjustable in height)

Free shipping in US and Canada (Continental only)
