NEW! This model is now available with our unique back hinge treadle system for a wider and cleaner shed. |
|
| COLONIAL LOOM |
Front Hinge |
NEW! |
||
COLONIAL LOOM |
45" | 60" | 45" | 60" |
| JACK-TYPE 4 SHAFT | 1051-0000 | 1052-0000 | 1091-0000 | 1092-0000 |
| 8 SHAFT LOOM | 1051-0008 | 1052-0008 | 1051-0008 | 1052-0008 |
| 12 SHAFT LOOM | 1051-0012 | 1052-0012 | 1051-0012 | 1052-0012 |
| Kit 4 More Shafts (to 8 or 12) | 6395-7000 | 6395-8000 | 6395-7000 | 6395-8000 |
| KIT BACK HINGE TREADLE FOR EXISTING LOOM 8S | 1091-2845 | 1091-2860 | ||
| KIT BACK HINGE TREADLE FOR
EXISTING LOOM 8S
|
1091-2145 | 1091-2160 | ||

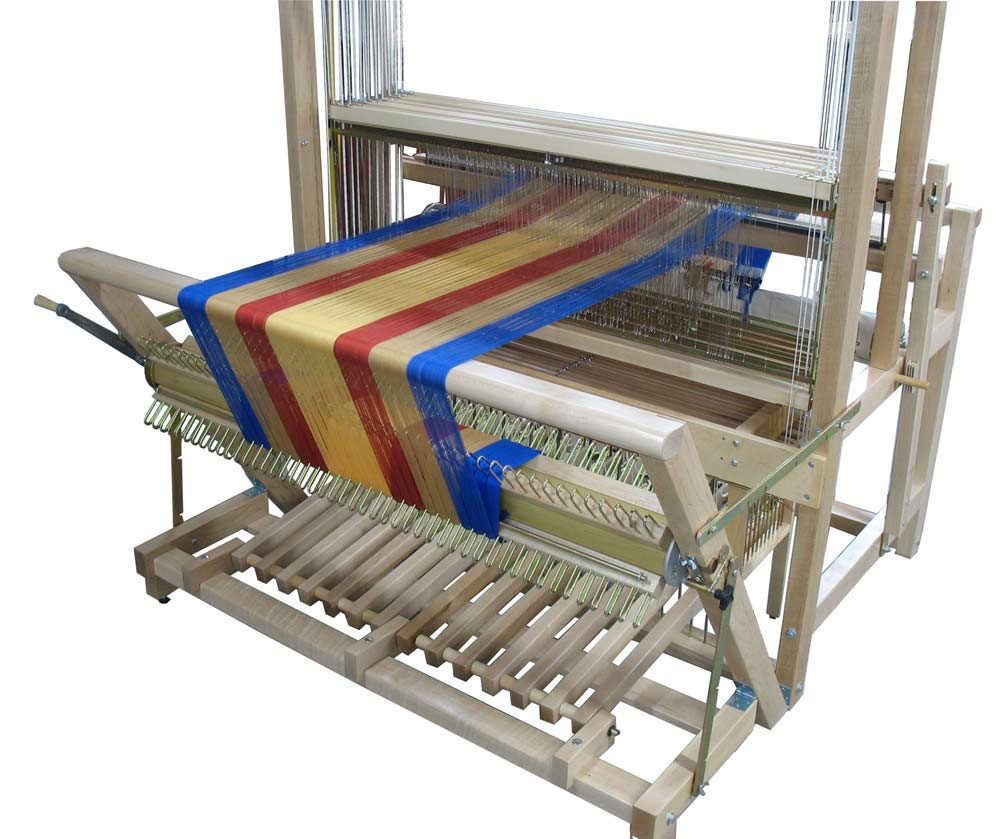

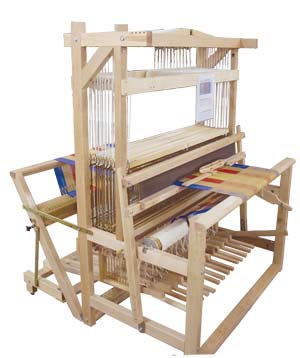

A VERSATILE LOOM
A loom reminiscent of those our ancestors used, with many major improvements which make it the most versatile loom ever produced. Its great adaptability allows it to be used as a general purpose loom, or for any specific purpose required by an inventive and creative weaver.
Made of the finest Canadian maple, it is finished with clear lacquer and varnish so that the beauty of the natural grain and color of the lumber remains visible.
This jack-type loom can be either 4, 8 or 12 shaft. 4 shaft kit can be ad anytime.
Because the jacks are in the loom castle, less pressure is needed to lift the shafts.
The back of the loom is foldable even when there is a warp on it.
The overhead beater is optional.
For an even better shed we now have it available with the back hinge treadles.
| » Steel reed, 12 dents/inch (5dents/cm) | » 2 lease sticks |
| » 6 treadles | » 4 warp rods |
| » Wire heddles, 12½" | » 2 aprons |
| » 1 boat shuttle 11¾" (6122-3000) | » 2 cords |
| » 1 doz. plastic bobbins 6133-6000 | » Book: "Warp and Weave" |
| » 1 reed & heddle hook 6141-7000 | » Assembly instructions |
SPECIFICATION & DIMENTIONS
| Weaving Width | 45" (115 cm) | 60" (150 cm) |
| Number of Heddles | 1200 | 1500 |
| Loom Width | 57" (145 cm) | 72" (183 cm) |
| Depth when Open | 53" (135 cm) | 53" (135 cm) |
| Depth when Folded | 33" (84 cm) | 33" (84 cm) |
| Total Height | 68" (173 cm) | 68" (173 cm) |
| Net Weight | 185 pds (84 Kg) | 219 pds (99 kg) |
OPTIONS
| 45" | 60" | |
| Extra charge for inserted eye heddles instead of wire heddles | 1051-9800 | 1052-9800 |
| Bench open end | 6384-4000 | 6384-4000 |
| Sectional warp beam 1" section | 6441-5000 | 6441-6000 |
| Sectional warp beam 2" section | 6442-5000 | 6442-6000 |
| Double warp beam | 6432-4500 | 6430-6000 |
| OVERHEAD BEATER | 6395-9000 | 6395-9000 |
| Flying shuttle beater | 6471-5000 | 6471-6000 |
|
Free shipping in US and Canada (Continental only) |
