16 shaft loom

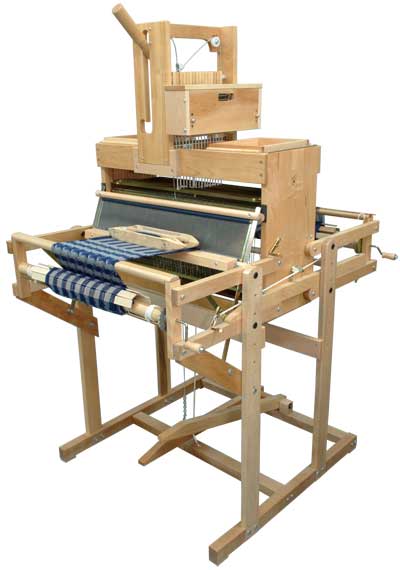

24" COMPUTER-DRIVEN TABLE (OR FLOOR) 16 SHAFTS LOOM
( since June 1997)
 -  -




      This new 16 Shaft Loom is designed to operate either as a Table model or, with our matching 2 Treadle Base, as a floor model. The unit   operate with MAC or PC Software.

       The Table top model is designed with the Operating Handle in the front of the Loom. The Operating Handle lifts the Shafts and locks the Shed open freeing both Hands to operate the Loom. The Operating Handle is then lowered changing the Shed to the next pick position and completing the cycle.

       The Floor model is designed to operate with two Treadles. The right Treadle lifts the Shafts to open the Shed. The left Treadle assists the return of the Shafts to neutral and controls the Pattern advance.

       The interface Box of this unit is self contained. It is designed to operate with Leclerc Computer units being designed for the Nilus, Nilus II, Nilart and Colonial model Looms.

SPECIFICATION

Weaving width: 24" Loom depth: 36" Net weight: 42 lbs (table)
Loom width: 28" Loom height (table): 31½" Loom Dimension when fold:
28"w, 20"d, 31"h

STAND SPECIFICATION:

Stand height: 26"
Height between floor and beam cloth : 29"
Net weight of loom with stand: 55lbs

STANDARD EQUIPMENT

Stainless steel reed 12  dt. 1 boat shuttle 6122-1000
1000 Inserted eye heddles 9½" 1 reed and heddle hook 6141-7000
2 Metal lease sticks 2 Beam sticks with cords
Instructions Book "Warp&Weave"





Free shipping in US and Canada (Continental only)
